Piston head DURAL DOUBLE

New product

299,00 Kč

Data sheet

Catalogue code HP-DUR-DOU
Dimension Standard
Material EN AW 6012 T6
Maximum suitable spring M170
Seal 1 pcs O-ring + 1pcs guide rings
Lightweight design NO
Surface finishing Electroless nickel
Bearings YES
Weight 11,3 g
Compatible with the gearbox v.2, v.3, v.7

More info

Producer: Airsoft parts

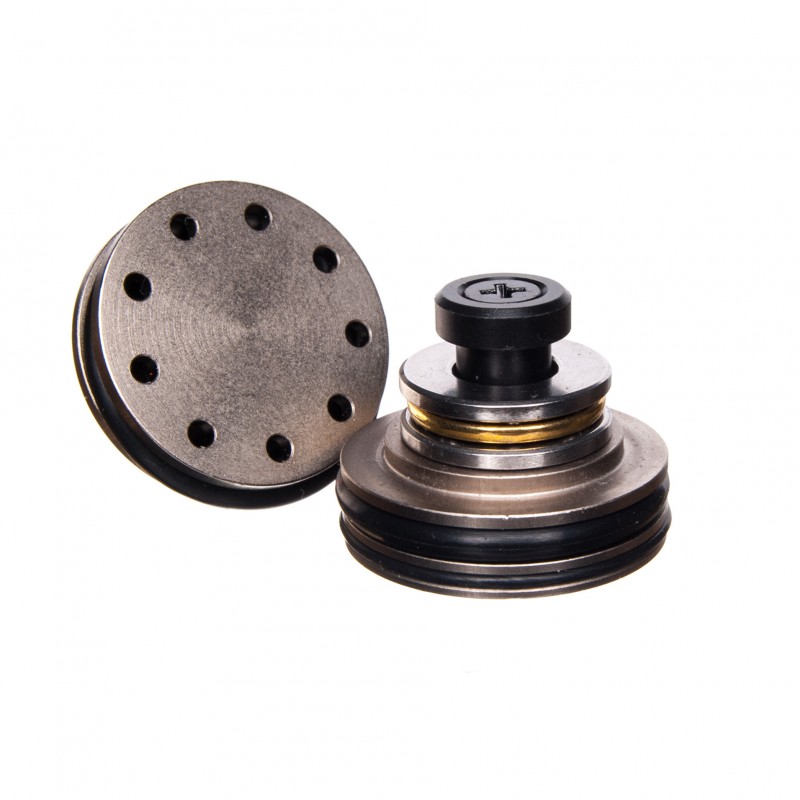

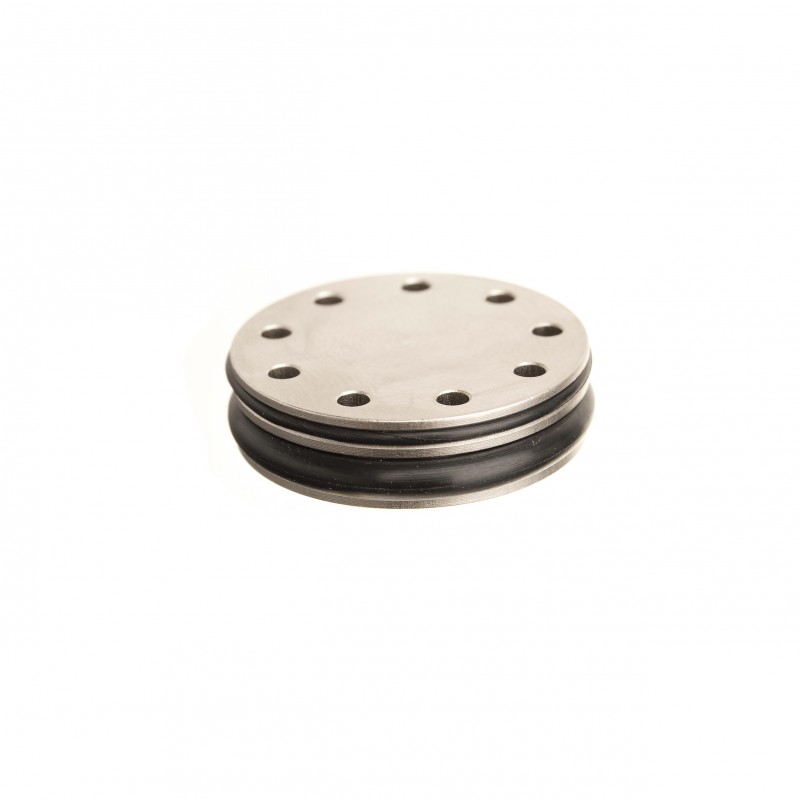

The piston head is made of duralumin EN AW 6012 T6on the CNC machining centre. Nine holes are drilled on the front side.The air stream flows through these holes during compression thus expanding the O-ring which provides for better sealing of the space between the piston head and the cylinder.

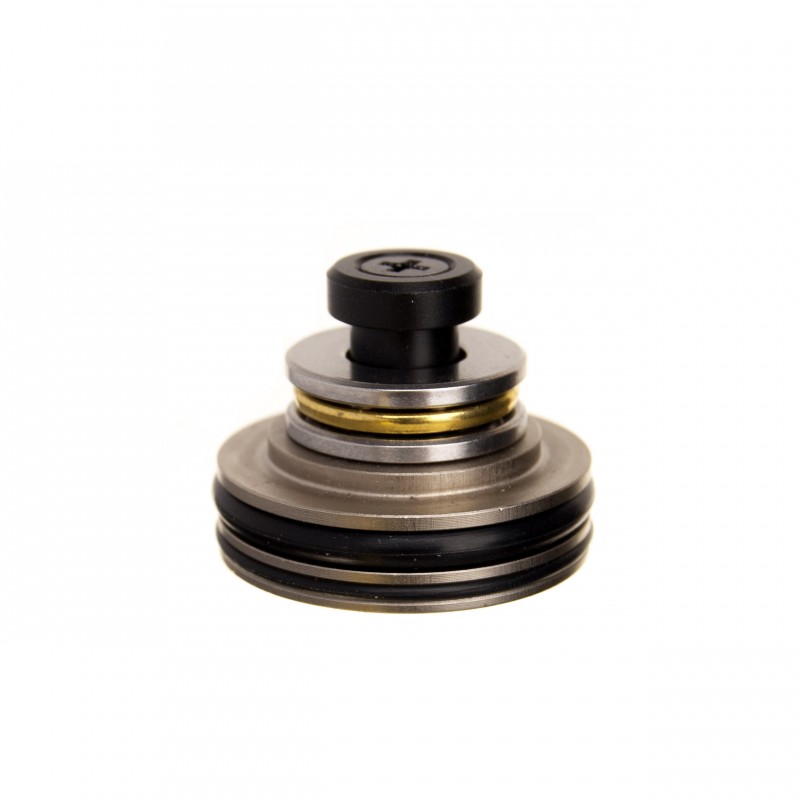

The piston head also includes an axial ball bearing which allows easy rotation of the spring in compression.This rotation significantly increases the service life of the spring.


  • High resistance
  • Perfect sealing + guide rings
  • Axial ball bearing for easy spring rotation
  • Sleek nickeled surface
  • Plastic nut that reduces total weight
